The Beginner's Guide to Systems Engineering
Understanding the Systems Engineering Lifecycle

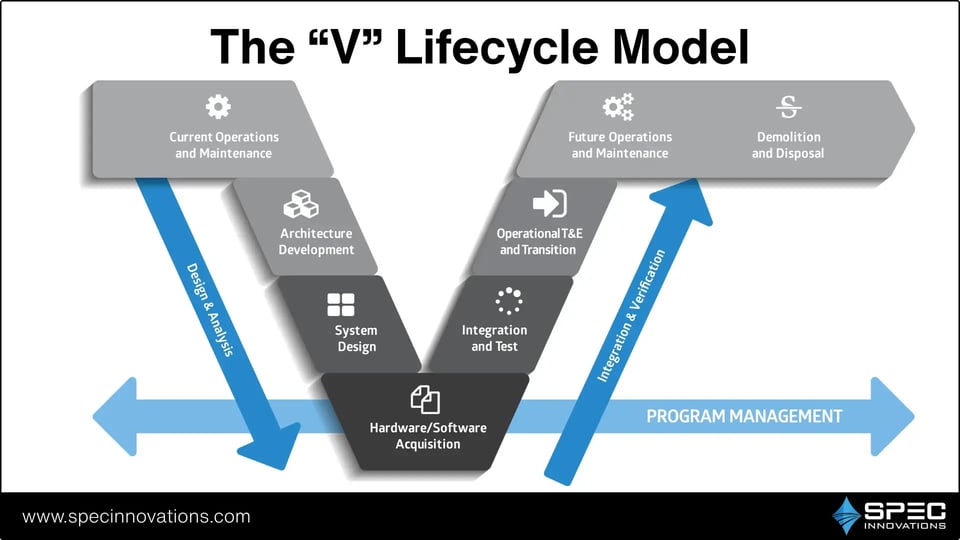

What Is the "V" Model?
At the heart of systems engineering is the lifecycle—a structured framework that guides a system from concept to retirement. One of the most widely used representations of this process is the "V" Model, which outlines the phases of system development alongside corresponding verification and validation activities.
.webp?width=960&height=540&name=The%20V-Model%20(3).webp)
The "V" Lifecycle Model, originally developed by Forsberg and Mooz, maps the engineering process from early design through to final deployment and decommissioning. On the left side of the "V," we find phases like architecture development, system and component design, and detailed planning. On the right side, we move through integration, test and evaluation, and transition to operations and support. The model also includes ongoing operations and maintenance, future updates to O&M, and eventual system disposal—critical steps often overlooked.

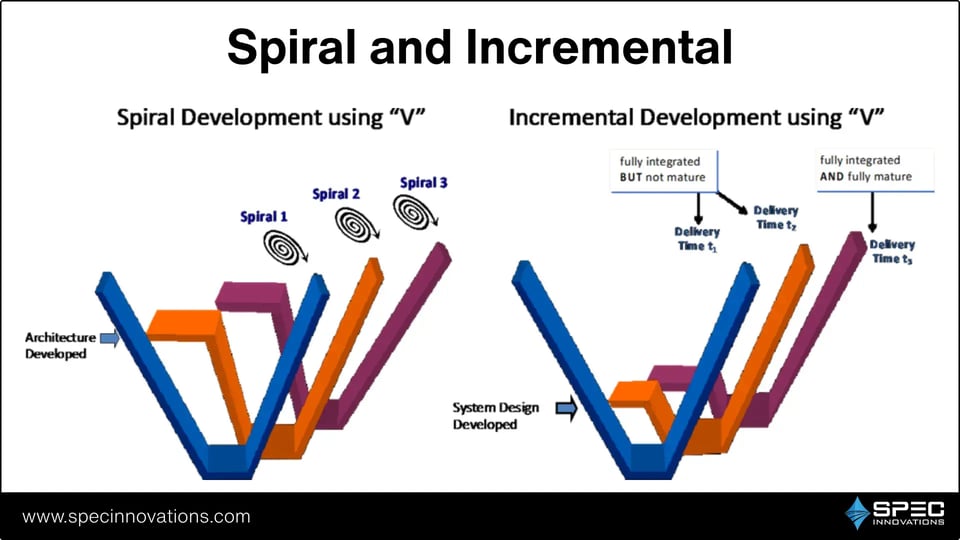

Using the "V" Model with Spiral and Incremental Development
While some critics view the "V" Model as overly linear or rigid, it can actually be adapted to support Agile, spiral, and incremental development processes—especially when implemented in shorter cycles.
In a spiral approach, each development cycle begins with a design phase and results in a more mature version of the product. This is ideal for long-term, evolving programs where risk reduction and stakeholder feedback are prioritized throughout development. Visualizing this as a series of "V"s, each spiral iterates through planning, design, integration, and validation, offering continuous improvement over time.
The incremental approach, by contrast, delivers partial functionality quickly, often starting with a minimum viable product (MVP). Each increment adds new features or capabilities through successive cycles. When paired with the "V" Model, every increment still follows a structured path of design, development, and validation—ensuring traceability and system integrity while accelerating time to value.
Both approaches maintain the rigor and discipline of systems engineering, while offering greater flexibility for modern software-driven or complex systems.
Planning Drives Execution
A key strength of the "V" Model is its emphasis on planning early to enable later phases. For example:
- During architecture development, engineers create a Test and Evaluation Master Plan (TEMP), along with transition, training, and logistics plans.
- In system design, the focus shifts to integration and verification planning, ensuring facilities and personnel are ready when needed.
These upfront activities aren’t just documentation—they're essential for stakeholder alignment, resource coordination, and keeping development funded and on track.
📖 Related Reading: Plan Verification and Validation Early in the Lifecycle
Core Systems Engineering Processes
The systems engineering process going down the left side of the “V” includes:
- Requirements Analysis
- Functional Analysis and Allocation
- Solution Synthesis
- Systems Analysis and Control
While traditionally viewed as a "top-down" or waterfall process, these phases are often iterative. In cases where requirements are vague or visionary, a “Middle-Out” approach may be more effective, starting with broad goals and evolving requirements collaboratively.
On the right side of the “V,” systems engineers guide:
- Integration
- Verification
- Validation
- Transition
Each step requires coordination across disciplines and stakeholders to ensure that the system being delivered meets expectations and is ready for operational use.
The Role of Systems Engineers and Stakeholders
Throughout the entire lifecycle, systems engineers play a central, coordinating role. They collaborate with program managers to align technical progress with program goals, identify risks early, and ensure the proper execution of lifecycle plans. From defining system architecture to supporting test and deployment, their work is foundational to project success.

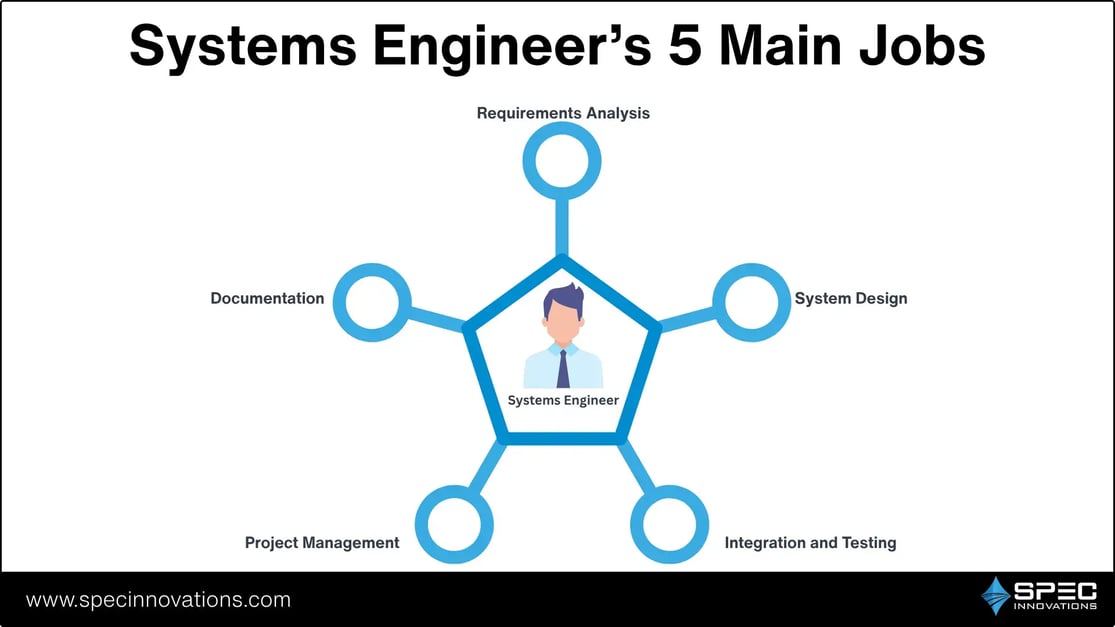

The Systems Engineer's Core Activities
Systems engineers design, integrate, and manage complex systems. Their five main jobs are requirements analysis, system design, integration and testing, project management, and documentation.
1. Requirements Management and Analysis
Systems engineers gather, manage, and analyze the needs and requirements of stakeholders to understand the desired functionality, performance, constraints, and other factors of the future system. This information is then turned into requirements and specifications for the system under development.
Requirements Document in Innoslate
📖 Related Reading: The Ultimate Guide to Requirements Management
2. System Design and Development
Systems engineers build a working knowledge of the domain they’re working in, using it to build models that represent current and future configurations of the system they are developing. These models can then be leveraged to create multiple potential solutions that can be analyzed for future requirements.
Asset Diagram in Innoslate
3. Integration and Testing
Systems engineers manage the integration of every subsystem and component, ensuring that all elements work together as intended. This includes managing the flow of information and the different interfaces involved in the system. They can also design and implement testing procedures that are then used to verify and validate the system under development.
GitHub View in Innoslate
4. Project Management and Program Management
Systems engineers can also serve in a “project manager” capacity, where they coordinate the system lifecycle development process while managing timelines, costs, and resources. In this role, systems engineers must minimize disruptions and mitigate project risks, such as scheduling the use of test facilities in advance and ensuring project milestones are met.
Gantt Chart in Innoslate
📽️ Watch: How to Develop a Program Management Plan Webinar
5. Documentation and Communication
Systems engineers must build and maintain a documentation database throughout the system development process, including elements such as design, analysis, testing, and implementation. These documents can include project plans, registers of requirements and risks, simulation and testing analysis, and other deliverables.
As they maintain this information, systems engineers are well-suited to communicate technical information to stakeholders, whether technical or non-technical, to ensure a clear understanding of the system throughout the different phases of development.
CONOPS Document in Innoslate
The Role of Program Management
Robust systems engineering thrives on collaboration across technical, managerial, and human-centered disciplines. Effective cross-disciplinary teamwork ensures that complex projects leverage the expertise and perspectives necessary to design, build, and sustain successful systems. Program management is essential for linking various disciplines.
Coordinating Diverse Efforts: Project and program managers act as the central hub connecting engineering, operations, business analysis, and quality assurance. They set project objectives, align teams, manage risk, and track progress throughout the system lifecycle.
Resource Allocation and Prioritization: Managers balance competing needs for budget, schedule, and personnel among technical and non-technical groups—ensuring each team has what it needs to deliver key system elements.
Facilitating Communication: They bridge the gap between technical specialists and stakeholders, translating requirements and progress into actionable tasks and clear updates for all involved parties.
Change Management: As projects evolve, managers oversee the management of evolving requirements, integration of new disciplines, and adaptation to external influences, promoting agility without losing control.
📖 Related Article: Change Management in Systems Engineering
Working With Stakeholders and Integrated Product Teams (IPTs)
Stakeholder engagement is crucial as it defines who needs to be involved in a project and the reasons for their participation. To facilitate effective collaboration, integrated product teams are established, providing a structured framework that brings the necessary individuals together. The outcome of this collaborative effort is reflected in decision-making and accountability, resulting in shared ownership of responsibilities, improved decision-making processes, and a reduction in gaps that can lead to misunderstandings or oversights.
Stakeholder Engagement: Systems engineers collaborate with a wide range of stakeholders—customers, end-users, suppliers, regulatory bodies, and sponsors—to elicit requirements, validate priorities, and build consensus around trade-off decisions.
Integrated Product Teams: IPTs are cross-functional groups bringing together experts from various fields (engineering, manufacturing, logistics, human factors, etc.) to work collaboratively through all phases of development. This structure accelerates information flow, surfacing challenges early and avoiding costly rework.
Decision-Making and Accountability: Cross-disciplinary teams support collective ownership of requirements, architecture, and risk management, improving buy-in and reducing the chance of oversight or siloed thinking.
Human Factors and Usability
Human-Centered Systems emphasizes the importance of designing systems with people as the primary focus rather than merely considering technical specifications. This approach is complemented by Interface Design, which prioritizes the clarity, reliability, and safety of user interactions with the system. Additionally, Ergonomics and Training play a crucial role in this framework by addressing the physical and instructional elements that enable users to operate the system effectively and with confidence. Together, these principles create a holistic environment that enhances user experience and system functionality.
Human-Centered Systems: Collaboration with human factors engineers ensures systems are designed not just for performance, but also for usability, safety, and operator satisfaction. Early and continuous integration of human factors supports the definition, design, and validation of requirements.
Interface Design: Cross-functional input is vital to design system interfaces (physical, data, control, user) that are intuitive, reliable, and error-tolerant. This reduces the risk of miscommunication, operational errors, or integration failures.
Ergonomics and Training: Attention to ergonomics and user training—rooted in collaboration between technical, instructional, and operational specialists—enhances effectiveness, reduces errors, and improves user adoption.
Successful systems engineering projects depend on collaborative partnerships between engineers, project managers, stakeholders, and specialists in human factors. Such teamwork breaks down silos, fosters innovation, and delivers systems that are functional, sustainable, and human-ready.

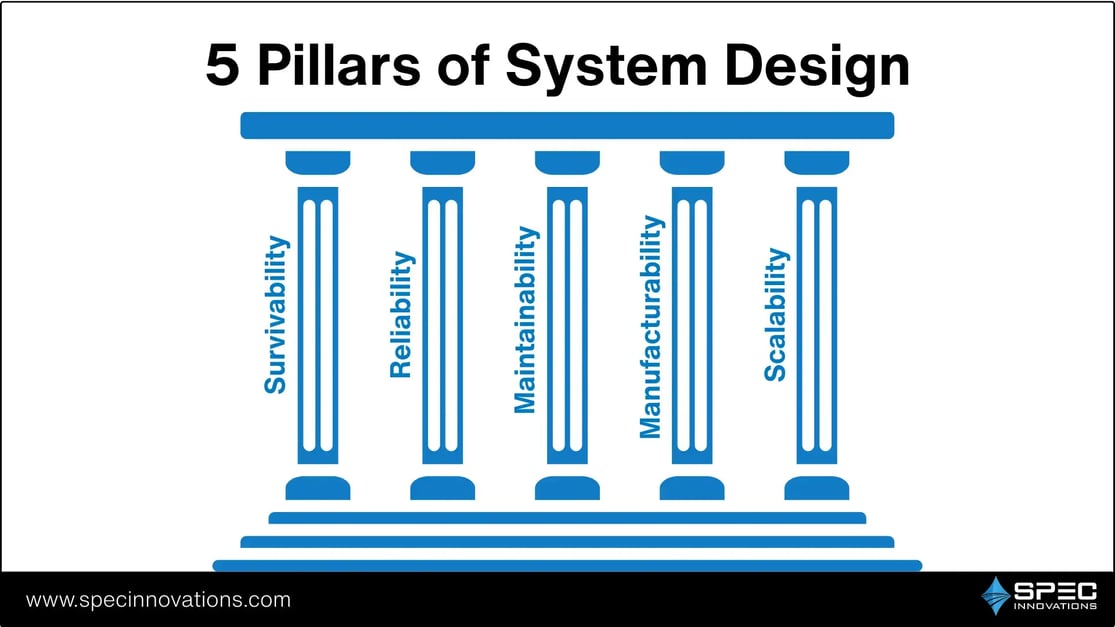

5 Pillars of Robust System Design
Survivability, reliability, maintainability, manufacturability, and scalability are often considered the foundational pillars—or "ilities"—of modern system design. Each represents a critical quality attribute that ensures engineered systems not only achieve their initial goals but continue delivering value efficiently, safely, and sustainably as requirements and environments evolve.
1. Survivability
Definition: The system's capability to withstand and operate through disruptions, attacks, failures, or accidents, and to recover or continue critical functions even under adverse conditions.
Tracking survivability ensures the system delivers its mission or services even in the presence of faults, hostile conditions, or unexpected disruptions. This is crucial for mission-critical or safety-critical systems in military, space, and infrastructure domains. The key principles include: prevention, redundancy, containment, and rapid restoration of essential functions.
2. Reliability
Definition: The probability that a system will perform its intended functions without failure over a specified period under defined conditions.
High reliability minimizes downtime, reduces failure rates, and builds user trust. It's fundamental for business continuity, user satisfaction, and regulatory compliance—especially in sectors like finance, healthcare, and transportation. Its key design focus is redundancy, quality assurance, robust error handling, and comprehensive testing.
3. Maintainability
Definition: The ease with which a system can be modified, updated, extended, or fixed during its life cycle.
Good maintainability reduces time and cost for troubleshooting, bug fixes, and adaptation to new requirements. It enables evolution and prolongs the useful life of systems. Its key design focus is modularity, low coupling, comprehensive documentation, coding standards, version control, and automated testing.
4. Manufacturability
Definition: The degree to which a design can be efficiently and cost-effectively produced using available manufacturing processes and resources.
Poor manufacturability can lead to excessive production costs, delays, errors, and quality issues. Early consideration optimizes part complexity, assembly steps, and cost, and allows effective scaling from prototype to mass production. Its key design focus is simplicity, standardization, process planning, design for assembly, and continuous process improvement.
5. Scalability
Definition: The ability of a system to handle increased loads, data, or users by adding resources without a drop in performance.
Scalability is crucial for systems that will face variable or growing demand—such as web services, cloud platforms, or data processing pipelines. A scalable design prevents service degradation, revenue loss, and expensive late-stage re-architecture. Its key design focus is modularity, horizontal and vertical scaling strategies, loose coupling, optimization, and future-oriented capacity planning.
How They Form the Pillars of System Design
These pillars are deeply interdependent and collectively ensure that systems:
- Survive adversity (survivability)
- Function consistently (reliability)
- Can evolve cost-effectively (maintainability)
- Are built efficiently (manufacturability)
- Can meet future growth (scalability)
Ignoring any one pillar often results in higher costs, system failures, user frustration, and ultimately, lost business or compromised safety. By explicitly prioritizing all five, systems designers create solutions that are robust, flexible, cost-effective, and built for long-term success.
📖 Related Reading: Non-Functional Requirements and Reliability in MBSE
Tools, Techniques, and Best Practices
Successful systems engineering relies on a blend of proven tools, disciplined techniques, and established best practices. These components work together to ensure systems are designed efficiently, meet requirements, and perform reliably throughout their lifecycle.
Modeling and Simulation
Modeling and simulation are foundational techniques in modern systems engineering. They allow engineers to create digital representations of systems—capturing functional, physical, and behavioral aspects—to predict performance, identify potential issues early, and validate design decisions before costly physical prototypes are built.
By leveraging languages such as SysML or Lifecycle Modeling Language (LML), engineers develop visual and data-driven models that facilitate communication among multidisciplinary teams and stakeholders. Simulation tools then enable virtual testing of system operations under a variety of scenarios, reducing risk and improving confidence in system behavior.
Digital Engineering Fundamentals
Digital engineering integrates data, models, and tools into a coherent digital framework that supports the entire system lifecycle—from concept to disposal. It emphasizes the use of digital twins, model-based systems engineering (MBSE), and data analytics to enable better decision-making and agility.
Adopting digital engineering principles enhances collaboration, accelerates development cycles, and provides traceability across requirements, design, verification, and validation. It fosters a more adaptive and data-driven approach to systems engineering.
Configuration Management
Configuration management ensures that system artifacts—requirements, design documents, software, and hardware components—are consistently tracked, controlled, and updated throughout the development process. Effective configuration management helps maintain system integrity, supports impact analysis when changes occur, and enables teams to reproduce or roll back system versions as needed.
By implementing robust configuration management processes and tools, organizations reduce errors, prevent unauthorized changes, and support auditability and compliance with industry standards.
Design Reviews and Audits
Design reviews and audits are critical checkpoints that verify system designs meet requirements and standards before advancing to the next development phase. Common review types include:
Preliminary Design Review (PDR): Confirms that the system’s preliminary design satisfies requirements and is feasible.
Critical Design Review (CDR): Ensures the detailed design is mature and ready for production or implementation.
These formal evaluations involve cross-functional teams assessing design artifacts, risks, and plans to identify gaps, mitigate risks, and foster stakeholder alignment.
Lessons Learned and Case Studies
Capturing and applying lessons learned from previous projects helps systems engineers avoid repeating mistakes and adopt successful strategies. Case studies provide real-world examples that illustrate how tools, techniques, and best practices have been effectively applied to solve complex engineering challenges.
Incorporating these insights into ongoing projects supports continuous improvement and knowledge sharing across teams and organizations.
📖 Related Reading: An MBSE Tool List for Systems Engineers
Industries Using Systems Engineering
Aerospace
The aerospace industry relies heavily on systems engineers to manage the complexity of designing, developing, and maintaining aircraft, spacecraft, and defense systems. These engineers ensure that all subsystems propulsion, avionics, communication, and structural components—work together seamlessly to meet mission requirements.
They use Model-Based Systems Engineering (MBSE) approaches, like those supported by Innoslate, to create digital models, conduct simulations, and analyze system performance throughout the lifecycle. Systems engineers also play a crucial role in
- risk management
- regulatory compliance
- integrating emerging technologies (i.e., artificial intelligence and digital twins)
NASA’s Space Shuttle Program, which operated from 1981 to 2011, oversaw 135 missions that helped build the International Space Station (ISS), repair satellites, and perform cutting-edge research in space. As the ISS involved the efforts of multiple nations and languages, systems engineers played a critical role in ensuring everything worked properly to support humanity's advancement and future.
Automotive
Automotive manufacturers are always pushing the boundaries of vehicle design and developing innovative features to capture competitive market share. Systems engineers help design increasingly fuel-efficient engines, integrate complex controls and electronics, and develop useful safety and quality-of-life consumer features, such as various driving assist tools, child safety locks, and interactive entertainment displays. These teams take great care to comply with regulatory requirements such as ISO 26262.
Healthcare
Medical devices are designed and optimized by teams that include systems engineers. These teams take great care to comply with regulatory requirements and standards such as ISO 13485. The devices then improve patient health outcomes or contribute to improved healthcare processes.
Industrial
Industrial Systems Engineers are a similar branch of engineering that stems from the broader field of systems engineering. They apply the same principles, but with a greater focus and emphasis on industrial systems. These industrial systems encompass all aspects of production, manufacturing, supply chains, and logistics. Beyond manufacturing equipment and machinery, industrial systems engineers must also consider the people and processes that make up the broader, interconnected, and operational networks that must be managed.
In summary, systems engineering provides the foundation, MBSE enhances it with digital modeling, and data-driven engineering pushes the boundaries with real-time data and analytics.
