Using MBSE for SOP Management

In complex operational environments, organizations must ensure that their Standard Operating Procedures (SOPs) are accurate, up-to-date, and consistently followed. Traditional SOP management often relies on static documents, which can lead to inconsistencies, inefficiencies, and costly errors.

We believe that the future of SOP management lies in leveraging Model-Based Systems Engineering (MBSE), a modern approach that replaces traditional paperwork with dynamic, interconnected digital models.

What Is MBSE and Why Does It Matter for SOPs?

MBSE is a methodology that utilizes digital models as the primary means of capturing, communicating, and managing all aspects of a system, including requirements, architecture, and interfaces. Instead of scattered documents that can quickly become outdated or inconsistent, MBSE provides a single source of truth for everyone involved in the process.

When applied to SOP management, MBSE brings several key advantages.

Improved Accuracy and Consistency: Digital models ensure that every procedure step is clearly defined and linked to related actions, actors, and outcomes. Changes are automatically propagated across the entire model, reducing the risk of errors and inconsistencies.

Enhanced Collaboration: All stakeholders, including engineers, operators, and management, can view and interact with the same model, fostering better communication and a shared understanding of procedures. Tools such as Sopatra, an SOP management software, can allow you to view the model as you work through the procedure.

Early Issue Detection: By simulating procedures within the model, organizations can identify potential issues and inefficiencies before they impact operations. Simulation enables you to estimate the variance in the duration of the procedure and the time until an error or issue arises.

Better Traceability and Compliance: Requirements and procedures are directly linked, making it easy to trace compliance and demonstrate adherence to regulations. Integrating MBSE tools, such as Innoslate, with Sopatra enables the creation of traceability between the SOP and the requirements documents.

📖 More Readings

• Using Model-Based Systems Engineering to Improve Process Management in DoD
• A MBSE Approach to Designing and Analyzing Standard Operating Procedures

How MBSE Transforms SOP Management

SPEC Innovations has developed the advanced tools, Innoslate and Sopatra, and methodologies that bring MBSE principles to SOP management.

Digitizing SOPs

Sopatra allows you to import your SOPs and related materials as documents. Then, using in-house Natural Language Processing (NLP) technology, the documents are transformed into process models. In addition to adding SOP documents, you can include related documents such as:

• Time Distribution: Time distribution estimations are loaded into the Sopatra database, ensuring that the correct time estimates are applied to each step (action) in your standard operating procedure. Learn about this vital step: Time Distribution Database File Manual.
• Input Devices: To indicate a physical action or manipulation needed from an operator on a specific device, Sopatra allows the upload of an Input Devices file. For example, a brake pedal or an ignition switch.
• Output Display: To indicate a visual or auditory cue from a display in the operator’s environment, Sopatra provides an output display file. For example, a fuel gauge or radar display.
• Acronyms: A unique feature in Sopatra is the acronym file import, which allows you to import a

  map of the Actor acronym to the full Actor name. This feature transforms any usage of acronyms into their full names.

Modeling SOPs

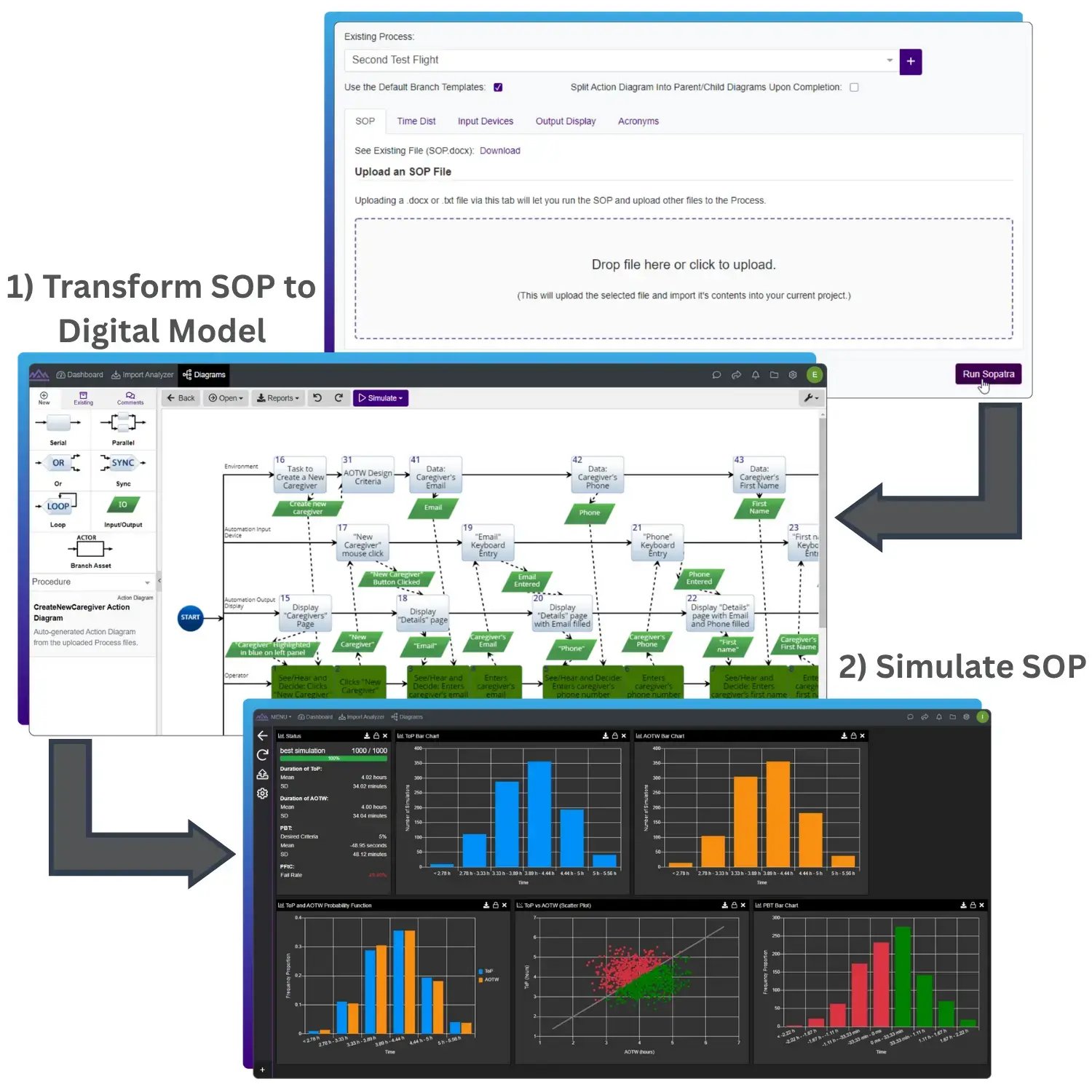

After importing, Sopatra automatically converts the imported text-based procedures into executable behavioral diagrams. You can now easily manage, analyze, and update the structured digital models. Viewing procedures as models is an effective method of deeply understanding the process.

Verify and Analyze

This process ensures that each SOP is thoroughly tested and validated before deployment, with ongoing monitoring and feedback loops for continuous improvement. Using simulations to test procedures, users can identify bottlenecks and optimize workflows.

Engaging Operators in the Process

Throughout the process of transforming SOPs into models for simulating human metric performance, it is essential to include the operators. Sopatra simplifies the engagement of operators in the creation and revision of SOPs by utilizing digital tools to collect real-world experiences and feedback.

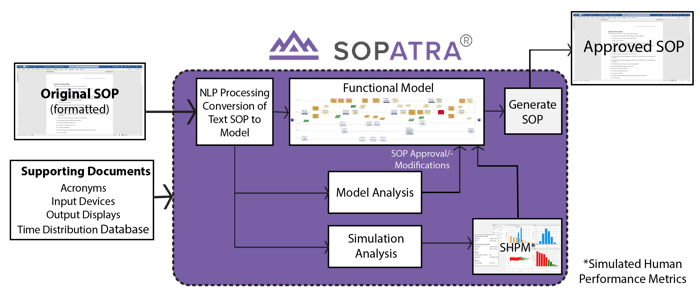

Our digital assistant tool, Sopatra, exemplifies this approach by breaking down each procedure step into perceptual, cognitive, and motor components. This not only standardizes SOPs but also makes them more intuitive and actionable for operators. Below is a visualization of the Sopatra methodology.

4 Benefits of MBSE-Driven SOP Management

1. Increased Efficiency: Digital models enable rapid evaluation of different procedure scenarios, helping teams identify and implement improvements quickly.
2. Reduced Errors: Automated updates and simulations minimize the risk of manual errors, ensuring that all stakeholders work with the latest information.
3. Continuous Improvement: Real-time monitoring and analytics provide data-driven insights for ongoing SOP refinement.
4. Better Risk Management: Early detection of issues and clear traceability help organizations mitigate risks and ensure compliance.

Transform Your SOPs to Digital Models

At SPEC Innovations, we are dedicated to modernizing SOP management through the power of Model-Based Systems Engineering (MBSE). By replacing static documents with dynamic, interconnected digital models, organizations can achieve greater accuracy, efficiency, and collaboration in their operations.

Whether you’re managing complex systems, critical safety processes, or everyday workflows, MBSE provides the tools and methodologies needed to ensure that your SOPs are always reliable, up-to-date, and ready for action^[8][7][3].

Discover how Sopatra can reduce SOP development time by half—schedule a demo today.
